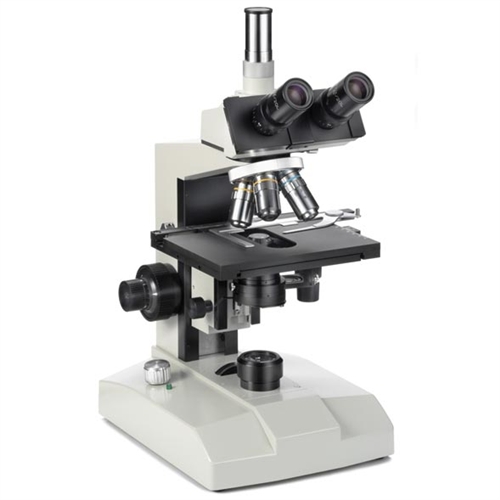

Euromex trinocular asbestos research microscope
Euromex trinocular asbestos research microscope



Alternative Views:


List Price: £3,150.00 (£3,780.00 inc VAT)
Our Price: £3,150.00 (3,780.00 inc VAT)


Availability:: Usually Ships in 3 to 5 Business Days
Product Code: ME.2075
Qty:

Description

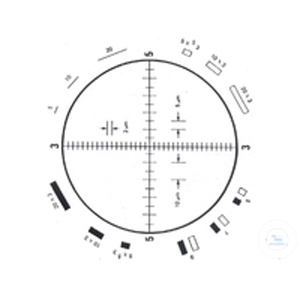

Eyepieces One HWF 12,5x/15 eyepiece, one HWF 12,5x/15 eyepiece with Walton & Beckett graticule. Both eyepieces with adjustable eyelens Tube Trinocular, 30° inclined, 360°rotatable. Eye-correction with permanent tube length adjustment. Interpupillary distance adjustable between 53 and 72 mm Nosepiece Suitable for 5 objectives, fitted with ball-bearings, with inside click stop Objectives The microscope is equipped with a special BF plan phase objective 40x. With this objective 5 bands on the HSL test slide are perfectly visible. Magnifications 50x, 125x en 500x Semi-plan SMP 4x N.A. 0.10 Semi-plan SMP 10x N.A. 0.25 with built- in filter gypsum red 1st order Semi-plan SMP 10x N.A. 0.25 with built-in polarization filter Semi-plan SMP Phase BF S40x N.A. 0.65 Stand Stable stand with coaxial coarse - and fine adjustment knobs. Graduation scale with 0.0025 mm interval. Adjustable specimen protection. Adjustable tension for coarse adjustment knob Stage Mechanical 171 x 140 mm flat-top stage, fitted with ball-bearings, with 78 x 52 mm X-Y translation, 0.1 mm scale. With coaxial controls. Detachable specimen holder Condenser Combined bright field and phase Abbe condensor N.A. 1.25, incl. green filter. With irisdiafragm and bluefilter in holder. Vertically adjustable by means of control knob with rack and pinion Illumination Built-in Köhler halogen illumination 6 volt 30 watt with field diaphragm. Precentred illuminator with collector lens. Light intensity continuously adjustable with transformer for 230 volt operation. RemarkPolarisor rotatable mounted on lamp house Packing with dustcover in styrofoam case Optional accessories AE.3690carry box with handle, lock and keys AE.3700HSL test slide More information about this product? Click here.http://www.euromex.com/media/files/gb/EUROMEX%20M%20English%20v2.pdf
